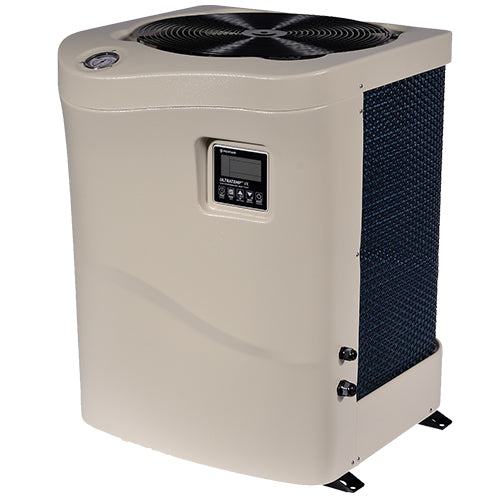

Pentair Ultratemp VX 15KW Heat Pump Top Fan - Single Phase Hard Wired

Pentair Ultratemp VX 15KW Heat pump from Pentair Water offers unbeatable value across their domestic range of horizontal (HX) and vertical (VX) Discharge heat pumps. Compared to Gas and Electric el...

Pentair Ultratemp VX 15KW Heat pump from Pentair Water offers unbeatable value across their domestic range of horizontal (HX) and vertical (VX) Discharge heat pumps. Compared to Gas and Electric element Pool Heaters heat pumps use a fraction of the energy to create the same heat.

**Electrical connection is not included in all quoted prices**

Pentair ULTRATEMP Series unique features:

Gold Coast Heat Pumps

• Automatic 4 way valve – auto defrost system

• Heating and cooling capability
• Electronic expansion valve (EEV2) – Increased energy savings by efficient fuel flow
• Intuitive LCD Touch screen
• Hydrophilic evaporator coating
• Titanium threaded heat exchanger – 30% increase in heat transfer
• Flow switch and high pressure cut out to ensure additional safety and protection
• PVC and powder coated zinc-alume corrosion resistant cabinet
• Low noise fan blades

Pentair ULTRATEMP VX 15KW Heat Pump Specifications:

• 15.10 KW Heat output rating @ 24 degrees air and 26 degrees water
• 11.01 KW Heat output rating @ 15 Degrees air and 24 degrees water
• 2.43 KW Power input @ 24 Degrees air
• 6.21 C.O.P at 24 Degrees air
• Unit Footprint (H x L x W) 823 x 688 x 650mm
• Top Discharge
• Rotary Compressor
• Titanium Heat Exchange
• 51db Noise Rating
• Refridgerant Type R410A
• Single Phase 240v Power Hardwired - 16.6 amps Max Running current


Upgrade Options

Thermal Pool Blanket and Roller

Thermal Pool Blankets - Gold Coast
ABGAL Heatshield 5mm thermal pool blanket with heavy duty roller:

We only use ABGAL Heatshield thermal pool blankets as they are the leader in thermal pool blanket market. Manufactured using a 5mm thick, double reinforced, multi-layered construction, the water proof, closed-cell polyethylene foam gives the blanket its superior thermal resistance qualities. The impermeable base layer gives it its chemical resistance.
Reinforced side bindings give the thermal pool an extra long life by preventing delamination and fraying on the sides. Used in conjunction with Hydro tools HRST Heavy Duty pool blanket rollers this combo is unbeatable.

Platinum Pool Centre have expert service technicians who can install all size heat pumps so call us for a quote today.

Pool Heating Gold Coast

Heat Pumps Gold Coast

Pentair Ultratemp Heat Pumps Pentair Heat Pumps Gold Coast
